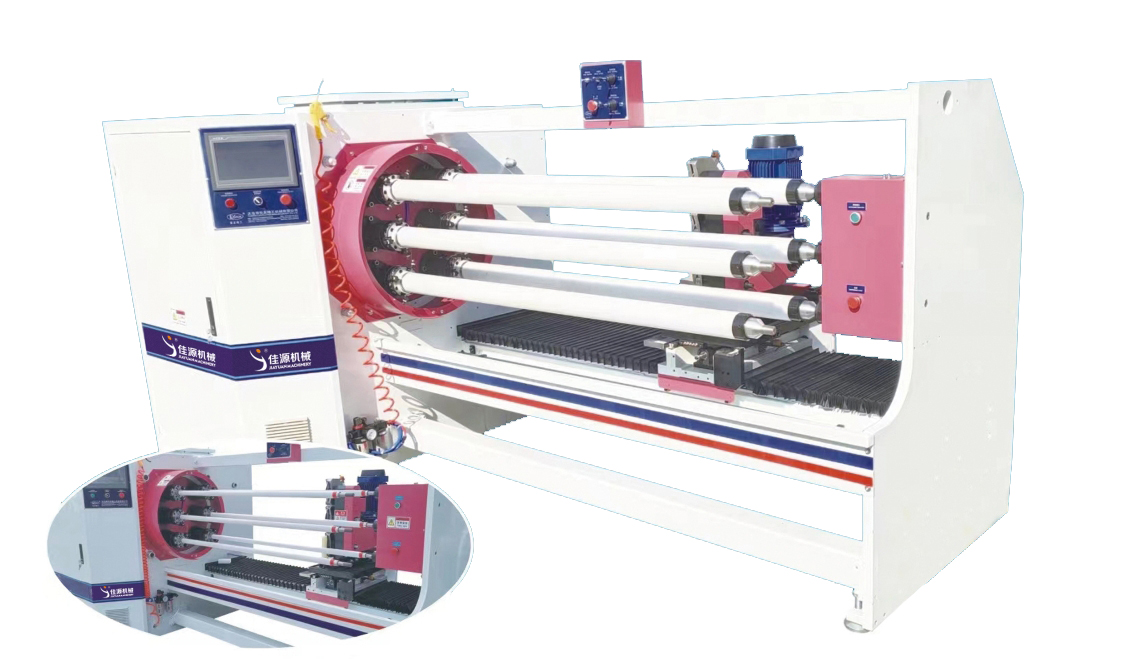

Cortadora de rollo continuo (de seis ejes), modelo JY-706
Máquina cortadora de rollos de cinta
This automatic slitting machine is made for high-volume mass production settings, featuring six revolving shafts for continuous slitting and rewinding. This six-shaft slitter supports materials such as BOPP, PV, PE, masking papers, imported high-quality double-sided tapes, kraft paper tapes, foam tapes, duct tapes, industrial adhesive tapes, protective films, etc.
Especificaciones
| Ancho de la máquina | 1.0m, 1.3m, 1.6m |
| Tolerancia de corte | ±0.1mm |
| Diámetro máx. de corte | 120mm |
| Diámetro min. de corte | 3mm |
| Diámetro de la cuchilla circular | Ø160mm |
| Diámetro del núcleo de papel | Ø25.4/32/38/76.2mm |
| Motor principal | 9kW/380V-50Hz (dependiendo del país) |
| Fuente de aire | 6 bar |
| Dimensiones | 3100×1880×1880mm (ancho de la máquina 1.3m) |
| Peso neto | ±1800kg |
